SLEIPNER SPS40E DC Electric Stabilizer Actuator

SPS40E DC Electric Stabilizer Actuator

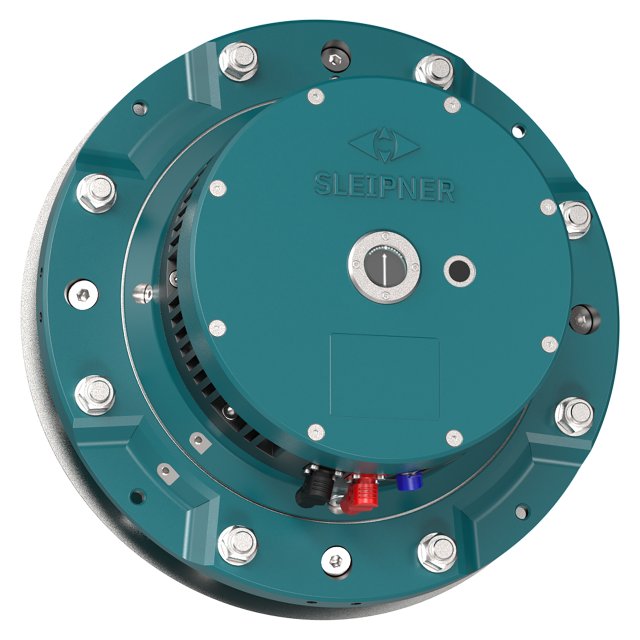

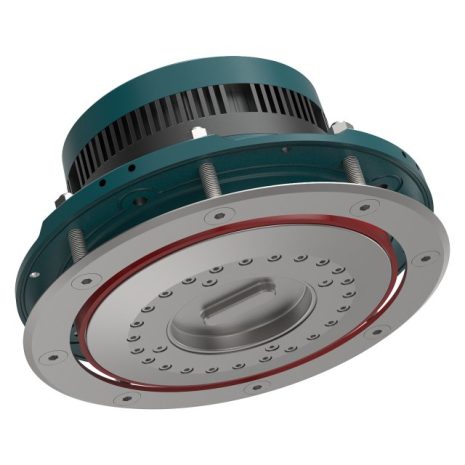

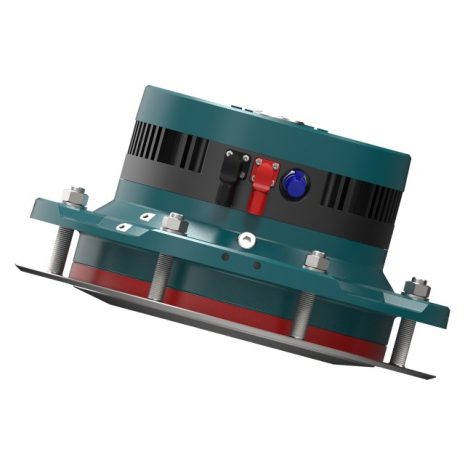

The SPS40E actuator is the driving force behind Sleipner’s Vector Fins™, delivering precise stabilization for compact yachts in the 14–18 meter range. Known for being the most compact and energy-efficient on the market, it integrates easily into yacht layouts, controlling fin movement to reduce roll and provide a smoother, more comfortable ride.

Powered by 24V or 48V DC, the SPS40E uses advanced algorithms to continuously adjust fin positioning in real-time, ensuring stability and comfort even in changing sea conditions.

• Typical vessel: Commercial, motor boats
• Vessel size: 45-60ft / 14-18m
• Power supply (VDC): 24/48V
• Power supply (VAC): –
• Fins model up to 25 knots: V³700
• Fins model 25+ knots: V³550
• Downloads: Document under ”sales info” the manual and installation manual under ”technical info”
